TS-400 Fabric Sample Cutting Machine

TS-400 Fabric Sample Cutting Machine

Feature

  • TS-400 is ideal for cutting cotton fabric, wool, silk, linen, chemical fiber, etc. It is widely used in textile industrial and sales company for cutting and making sample.
  • Rugged construction, imported special sharp and durable steel blade, cut quickly and high efficiency.
  • Designed with safety protection, dispose sample at liberty and more flexible.

Alloy Steel Knife

TS400(3)

Cutting thickness up to 30-40 layers

TS400(4)

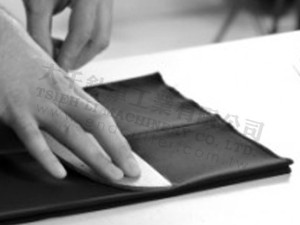

Trimming suit trousers

TS400(5)-1

  • TS-400
  • CUTTER LENGTH
    16” (400 mm)
  • DIMENSIONS / WEIGHT
    560x600x1100mm / 40kgs
  • TABLE SIZE
    (560+300)x500mm
  • CUTTING THICKNESS
    15-60mm
  • TS-500
  • CUTTER LENGTH
    20” (500 mm)
  • DIMENSIONS / WEIGHT
    560 x 700 x 1100 mm / 50 kgs
  • TABLE SIZE
    (560+300) x 600mm
  • CUTTING THICKNESS
    15-70mm
  • TS-600
  • CUTTER LENGTH
    24” (600 mm)
  • DIMENSIONS / WEIGHT
    560 x 800 x 1100 mm / 60 kgs
  • TABLE SIZE
    (560+300) x 700mm
  • CUTTING THICKNESS
    15-80mm

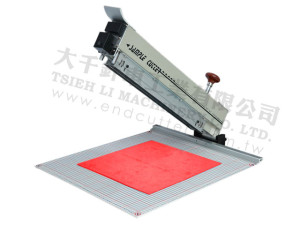

點上圖參考 TS-915 樣布裁切機 (鋸齒型)
