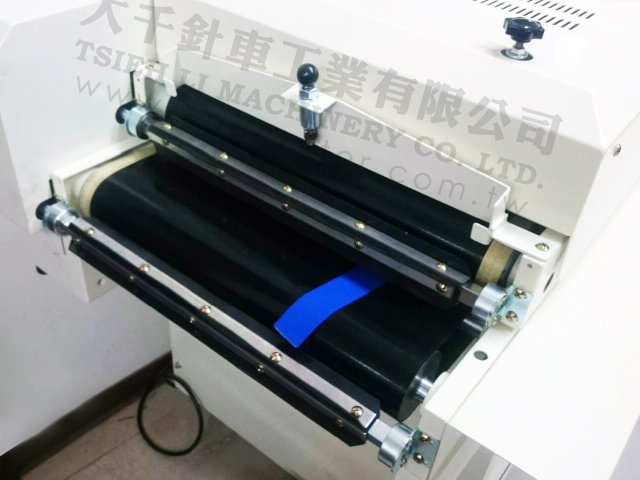

The Mini Press Machine

Energy saving, cost saving.

The Mini Press Machine

Features

  • Open arm design enable side feeding of material.
  • Energy saving, cost saving.
  • Electric thermostat, SSR & Special heater minimized temp. difference range.
  • The pressure is easily adjusted by turning the thumb nut.
  • This is continuous type machine therefore production as greatly increased.
  • Easy to operate and maintenance.
  • This machine has automatic stop and temperature reduction installation.

TM-450D(The Mini Press Machine)

TM-450D(迷你黏襯機) THE MINI PRESS MACHINE
  • TM-450D(The Mini Press Machine)
  • Power supply
    220V 380V 50 / 60Hz Single or 3 phase
  • Motor
    40 W
  • Heater
    3.2 Kw (4 pcs)
  • Max. temperature
    300°C (572°F)
  • Max. pressure
    2kgs/cm 2
  • Fusing width
    450 mm
  • Net weight/Gross weight(No stands)
    160 Kgs/ 240Kgs
  • Dimension/ Packing volume (No stands)
    185 x 80 x 108 cm/ 130 x 95 x 80 cm

TM-450DR(The Mini Press Machine – Return type)

TM-450DR(迷你黏襯機-往復式) (THE MINI PRESS MACHINE RETURN TYPE)
  • TM-450DR(The Mini Press Machine - Return type)
  • Power supply
    220V 380V 50 / 60Hz Single or 3 phase
  • Motor
    40 W
  • Heater
    3.2 Kw (4 pcs)
  • Max. temperature
    300°C (572°F)
  • Max. pressure
    2kgs/cm 2
  • Fusing width
    450 mm
  • Net weight/Gross weight(No stands)
    200 Kgs/ 290Kgs
  • Dimension/ Packing volume (No stands)
    185 x 80 x 108 cm/ 170 x 95 x 130 cm
