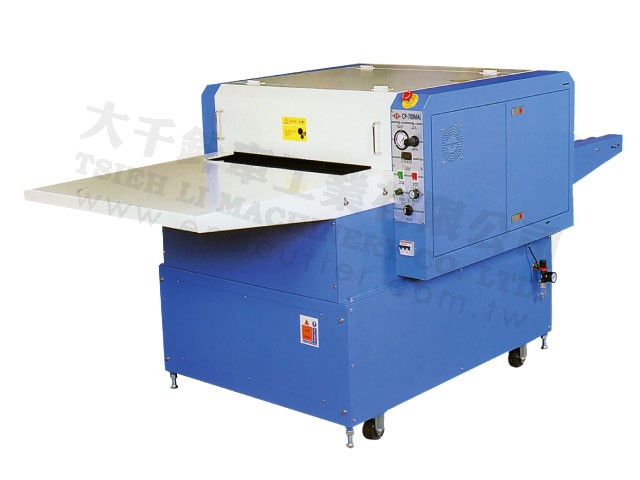

TM-BR600 Fusing Press Machine

TM-BR600 Fusing Press Machine

For the woven/knitted fabrics fusing.
Fusing for the whole fabric and interline.

Feature

  • Easy to operate and maintenance.
  • The change of belts can be done in a short time.
  • The pressure is easily adjusted by turning the thumb nut.
  • Continuous fusing system increase productivity and unlimited working length.
  • The temperature difference’s range is kept at ±3°C by using electronic thermostat and no-contact SSR electronic parts.
  • Six heaters are adjustable as rear / front position so as to handle any fabrics or interlinings.
  • Automatic tracking adjustment device prevent upper and lower belts from snaking and always keeps the belts right in the center position.
  • TM-600BR
  • MOTOR
    40W
  • POWER
    220V/380V ;  50/60Hz
  • ELECTRIC HEATING
    6.0 KW (6pcs)
  • MAX TEMPERATURE
    200℃
  • MAX PRESSURE
    4.0 kgs/cm²
  • USING WIDTH
    600 mm
  • DIMENSION
    210 x 105 x 102 (cm)
  • NET / GROSS
    250/350 (kg)
