工業縫紉配件 – 喇叭

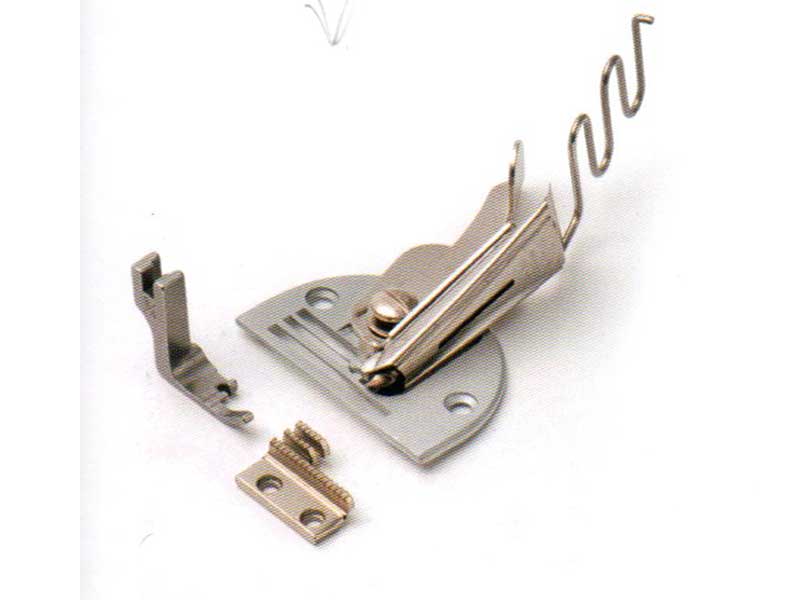

平車喇叭

示意圖

入口尺寸

16mm18mm20mm
22mm24mm26mm
28mm30mm32mm
34mm36mm38mm
40mm45mm50mm

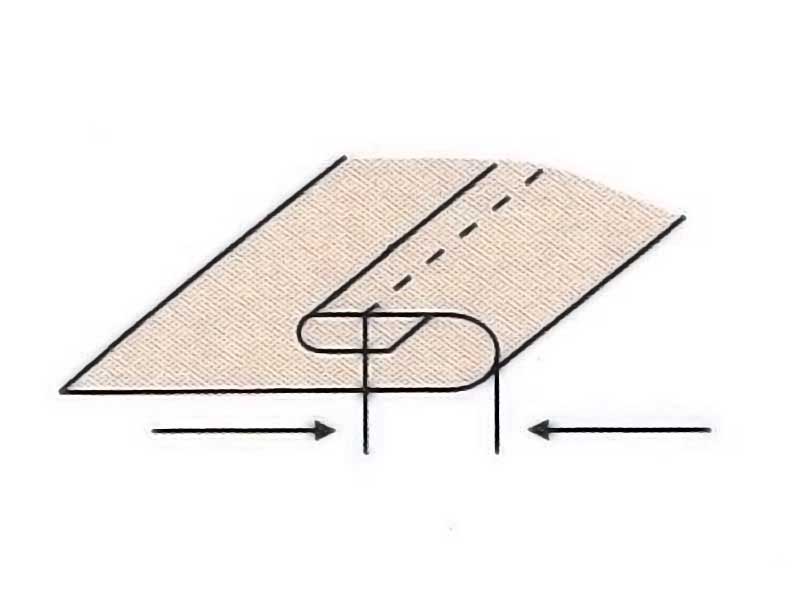

單針平車下擺喇叭

示意圖

入口尺寸

1/8″3/16″1/4″
5/16″3/8″1/2″
5/8″3/4″7/8″
1″1 1/8″1 3/16″
1 1/4″1 1/2″2″

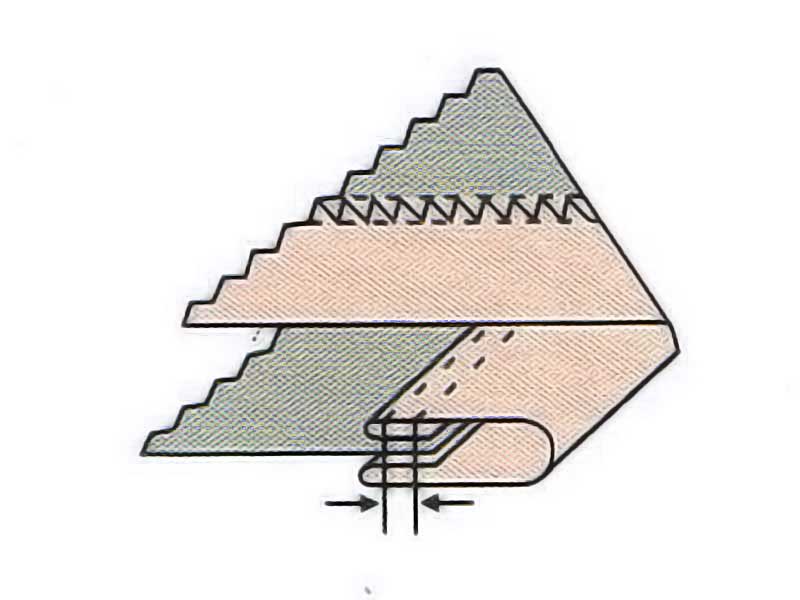

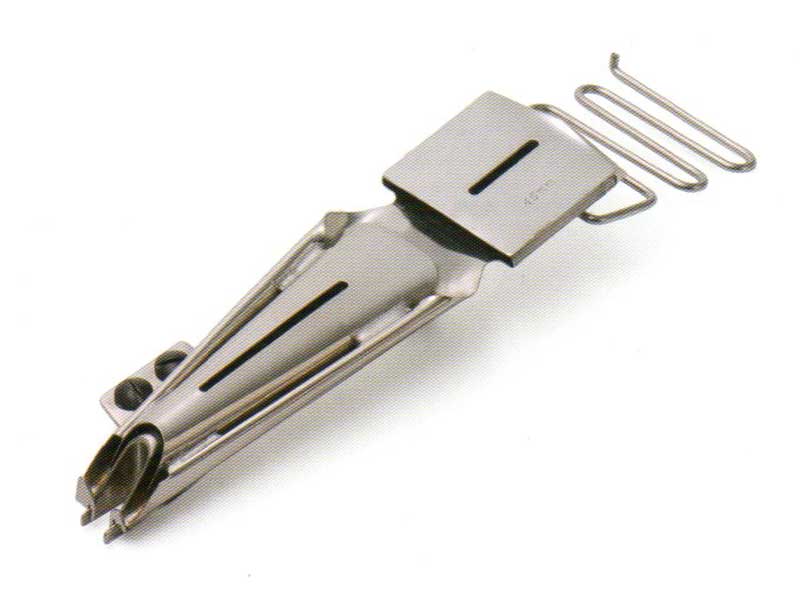

筒式繃縫喇叭

示意圖

入口尺寸 (三摺)

入口尺寸出口尺寸
3/4″19mm1″6mm
1″25mm5/16″8mm
1 1/8″29mm3/8″10mm
1 1/4″32mm7/16″12mm
1 3/8″35mm1/2″13mm
1 9/16″40mm19/32″15mm
1 5/8″41mm5/8″16mm
1 3/4″45mm11/16″18mm
1 7/8″48mm3/4″20mm
2 1/8″53mm7/8″22mm
2 3/8″”60mm1″25mm

入口尺寸 (四摺)

入口尺寸出口尺寸
1″25mm1/4″6mm
1 1/4″32mm5/16″8mm
1 1/2″38mm3/8″10mm
1 9/16″40mm7/16″12mm
1 5/8″41mm1/2″13mm
1 3/4″45mm9/16″15mm
2″50mm5/8″16mm
2 3/16″55mm11/16″18mm
2 3/8″”60mm3/4″20mm
2 1/2″64mm7/8″22mm
2 3/4″70mm1″25mm

平台式繃縫喇叭

示意圖

入口尺寸 (三摺)

入口尺寸出口尺寸
3/4″19mm1″6mm
1″25mm5/16″8mm
1 1/8″29mm3/8″10mm
1 1/4″32mm7/16″12mm
1 3/8″35mm1/2″13mm
1 9/16″40mm19/32″15mm
1 5/8″41mm5/8″16mm
1 3/4″45mm11/16″18mm
1 7/8″48mm3/4″20mm
2 1/8″53mm7/8″22mm
2 3/8″”60mm1″25mm

入口尺寸 (四摺)

入口尺寸出口尺寸
1″25mm1/4″6mm
1 1/4″32mm5/16″8mm
1 1/2″38mm3/8″10mm
1 9/16″40mm7/16″12mm
1 5/8″41mm1/2″13mm
1 3/4″45mm9/16″15mm
2″50mm5/8″16mm
2 3/16″55mm11/16″18mm
2 3/8″”60mm3/4″20mm
2 1/2″64mm7/8″22mm
2 3/4″70mm1″25mm

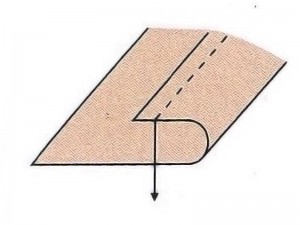

單層喇叭

示意圖

入口尺寸

1/8″3/16″1/4″
5/16″3/8″1/2″

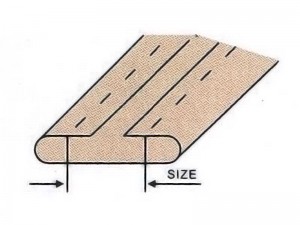

雙針對摺喇叭

示意圖

入口尺寸

10mm12mm14mm
16mm18mm20mm
22mm25mm32mm
34mm

單層喇叭 (彈性布)

示意圖

入口尺寸

1/16″1/8″3/16″
1/4″5/16″3/8″
1/2″
